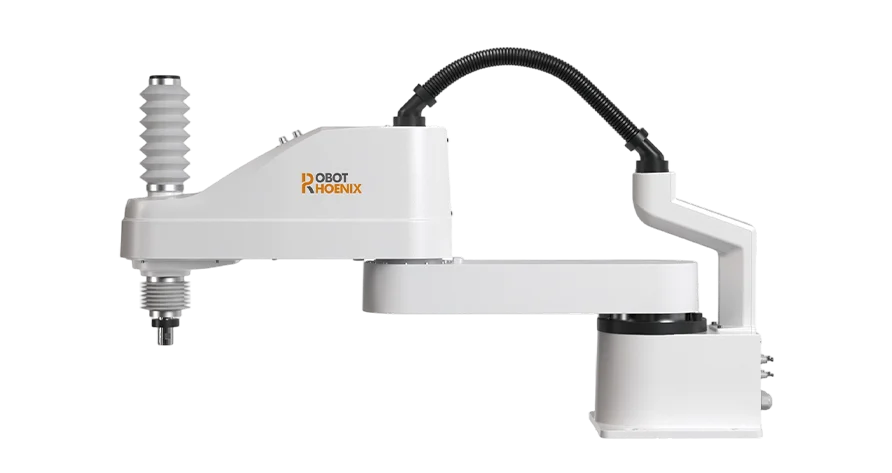

Python800-C10 is a high-performance 4-axis SCARA robot from the Python C-Series cleanroom range, designed for precise, fast, and reliable automated handling. With an 800 mm arm reach, 5 kg rated payload capacity (up to 10 kg maximum), and repeat positioning accuracy of ±0.025 mm, it is well suited for applications such as assembly, pick-and-place, packaging, and material transfer.
Its third-axis working stroke reaches 178 mm, while the standard cycle time is as fast as 0.47 seconds, supporting efficient high-volume production. The robot features tabletop installation, a compact 39 kg body weight, and compatibility with CB418-A4D/CB402-A3D-*K controllers, making it a practical solution for clean and space-efficient automation environments.
| Model | Python800-C10 | |
| Arm Length(mm) | Combined Length of Arm 1 & 2 | 800mm |
| Repeatability | Joints 1-2 | ±0.025mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Rated | 5Kg | |
| Payload | Maximum | 10Kg |
| Working Range | Joint 3 | 178mm |
| 1 Standard Cycle Time: 1 | 0.47s | |
| Total Power Consumption | 2.4kw | |
| Mounting Type | Ceiling Mounting | |
| Robot Weight (Excluding Cables) | 39kg | |
| Matching Control Cabinet | CB418-A4D/CB402-A3D-“K | |
