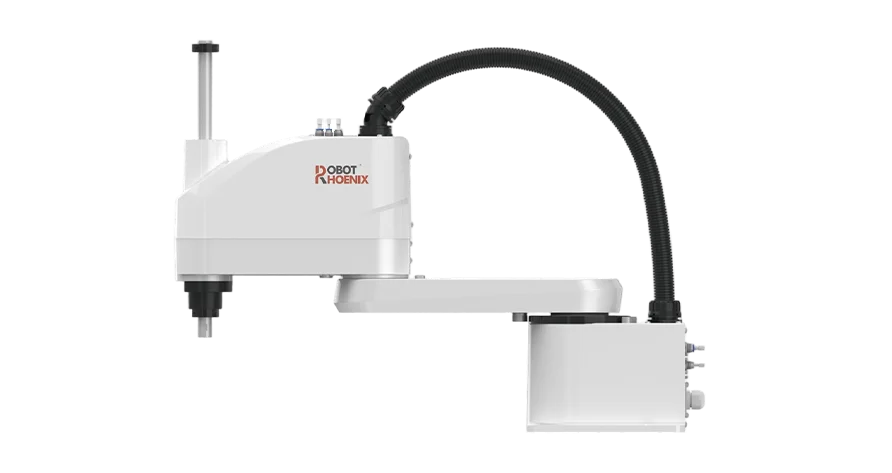

Python550-B6 is a high-performance industrial SCARA robot designed for fast and precise assembly, handling, and pick-and-place applications. It features a 550 mm arm length, ±0.02 mm repeatability for joints 1–2, and a ±0.01 mm repeatability for joints 3–4. With a rated payload of 3 kg, a maximum payload of 6 kg, and a standard cycle time of 0.37 seconds, it provides reliable and efficient operation for automated production lines. The robot is table-mounted, weighs 25 kg excluding cables, and is compatible with the CB417-A4D/CB400-A3D-K controller.
| Model | Python550-B6 | |
| Arm Length(mm) | Combined Length of Arm 1 & 2 | 550mm |
| Repeatability | Joints 1-2 | ±0.02mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Rated | 3Kg | |
| Payload | Maximum | 6Kg |
| Working Range | Joint 3 | 240mm |
| 1 Standard Cycle Time: 1 | 0.37s | |
| Total Power Consumption | 1.3kw | |
| Mounting Type | Tabletop Mounting | |
| Robot Weight (Excluding Cables) | 25kg | |
| Matching Control Cabinet | CB417-A4D/CB400-A3D-“K | |
