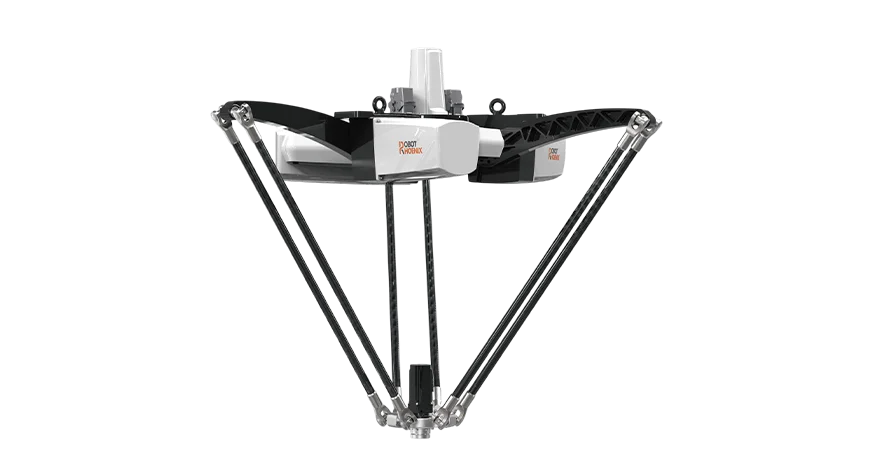

The BAT1300M-S15 is a high-performance Delta robot designed for high-speed material handling, pick-and-place, packaging, and palletizing applications. With a 15 kg rated payload and a 1,300 mm working envelope, it combines high payload capacity with fast and precise motion for demanding production environments.
Featuring a 3-axis + 1-axis configuration, bottom-mounted fourth-axis motor, and ±0.1 mm repeatability, the BAT1300M-S15 delivers stable and accurate handling at speeds of up to 200 picks per minute.
| Specification | Bat1300M-S15 |
| Rated Payload (kg) | 15 |
| Working Envelope Diameter (mm) | 1300 |
| Number of Axes | 3 + 1 |
| 4-Axis Motor Bottom-Mounted | Yes |
| Repeatability (mm) | ±0.1 |
| 4-Axis Angular Repeatability (°) | ±0.05 |
| Maximum Cycle Rate (pick/min) | 200 |
| Total Power Consumption | — |
| Mounting Method | Suspended |
