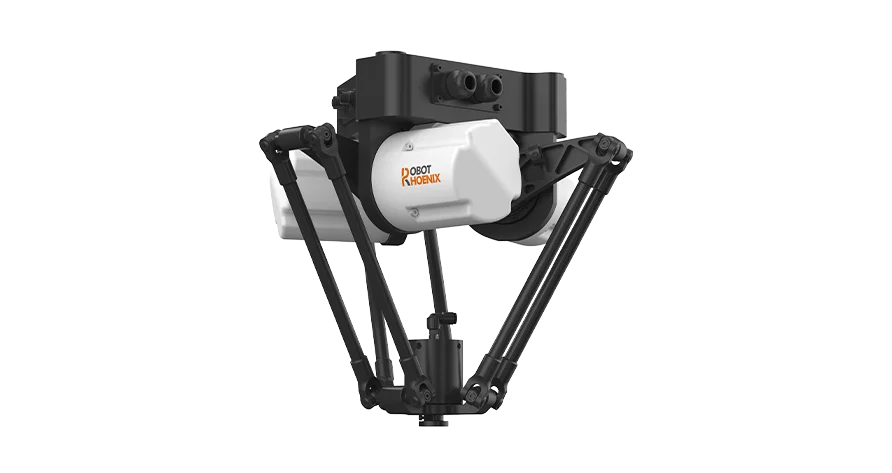

The Bat360M-S1 is a compact, high-speed delta robot designed for precise and efficient pick-and-place automation. With a 1 kg rated payload, 360 mm working diameter, and a 3-axis + 1-axis configuration, it is well suited for fast handling, sorting, packaging, and light assembly applications.
Offering repeat positioning accuracy of ±0.05 mm and a maximum operating frequency of 162 cycles per minute, the Bat360M-S1 delivers reliable performance where speed and precision are essential. Its suspended mounting design helps save valuable floor space while supporting flexible integration into automated production lines.
| Specification | Bat360M-S1 |
| Rated Payload (kg) | 1 |
| Working Envelope Diameter (mm) | 360 |
| Number of Axes | 3 + 1 |
| 4-Axis Motor Bottom-Mounted | No |
| Repeatability (mm) | ±0.05 |
| 4-Axis Angular Repeatability (°) | ±0.1 |
| Maximum Cycle Rate (pick/min) | 162 |
| Total Power Consumption | 3.4 kW |
| Mounting Method | Suspended |
