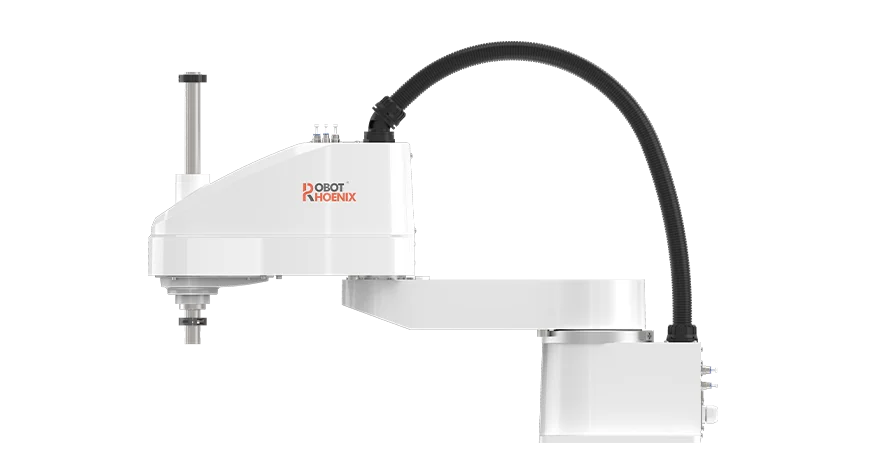

Python650-B10 is a high-performance industrial robot with a 650 mm mechanical arm length and a 5 kg rated payload. It offers repeatability of up to ±0.01 mm for joints 1–3, a 240 mm working range at the third joint, and a standard cycle time of 0.39 seconds. Designed for tabletop installation, it is suitable for fast and precise pick-and-place, assembly, sorting, and handling applications.
| Model | Python650-B10 | |
| Arm Length(mm) | Combined Length of Arm 1 & 2 | 650mm |
| Repeatability | Joints 1-2 | ±0.025mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Rated | 5Kg | |
| Payload | Maximum | 10Kg |
| Working Range | Joint 3 | 208mm |
| 1 Standard Cycle Time: 1 | 0.51s | |
| Total Power Consumption | 2.0kw | |
| Mounting Type | Tabletop Mounting | |
| Robot Weight (Excluding Cables) | 33.5kg | |
| Matching Control Cabinet | CB418-A4D/CB402-A3D-“K | |
