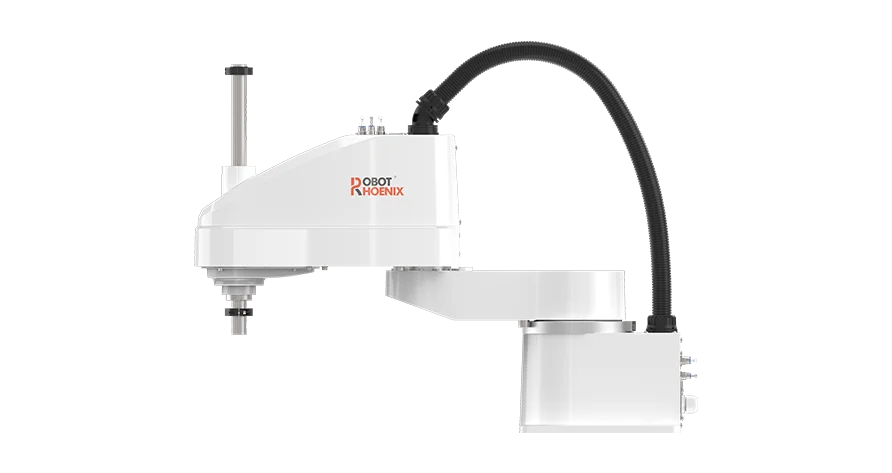

Python550-B10 is a high-performance SCARA robot with a 550 mm arm length and a payload capacity of up to 10 kg. It offers repeatability of ±0.025 mm for the first two joints, ±0.01 mm for the third and fourth joints, and a typical cycle time of 0.51 seconds. Designed for tabletop installation, it is suitable for fast and precise assembly, handling, sorting, packaging, and other automated production applications.
| Model | Python550-B10 | |
| Arm Length(mm) | Combined Length of Arm 1 & 2 | 550mm |
| Repeatability | Joints 1-2 | ±0.025mm |
| Joint 3 | ±0.01mm | |
| Joint 4 | ±0.01° | |
| Rated | 5Kg | |
| Payload | Maximum | 10Kg |
| Working Range | Joint 3 | 208mm |
| 1 Standard Cycle Time: 1 | 0.51s | |
| Total Power Consumption | 2.0kw | |
| Mounting Type | Tabletop Mounting | |
| Robot Weight (Excluding Cables) | 33kg | |
| Matching Control Cabinet | CB418-A4D/CB402-A3D-“K | |
