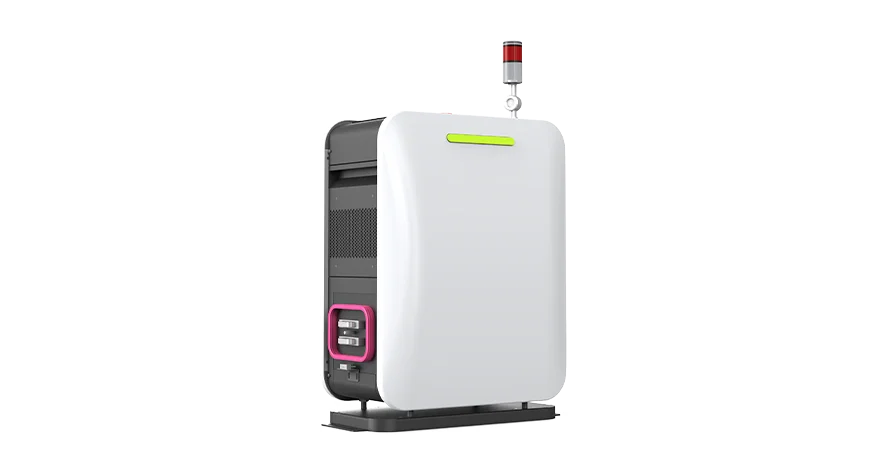

The EH-24100-S1-310-0 is an automatic charging system designed for reliable and efficient power delivery in industrial and mobile robotics applications. With a maximum output power of 3,000 W, adjustable 16–32 VDC output voltage, and 1–100 A output current, it supports flexible charging requirements across a range of robotic platforms.
Equipped with automatic charging, forced-air cooling, and a 7-inch touchscreen HMI, the system enables intuitive operation and real-time charging status monitoring. Integrated indicator lights provide clear visual feedback for standby/full charge, charging, and fault conditions, supporting safe and convenient daily operation.
Parameter | Specification | Unit |
Model | Eh-24100-S1-310-0 | |
Overall Dimensions (L × W × H) | 744 × 618 × 364 | mm |
Charging Mode | Automatic Charging | |
Input Voltage Range | 174–265 VAC | VAC |
Input Frequency Range | 50/60 ± 5% | Hz |
Output Voltage Range | 16–32 VDC | VDC |
Output Current Range | 1–100 | A |
Maximum Power | 3000 | W |
Brush Retraction Stroke | None | mm |
Brush Center-to-Ground Height | 175 (Height Adjustment Range: ±30 mm) | mm |
Photoelectric Sensor Center-to-Ground Height | None | mm |
Cooling Method | Forced Air Cooling | |
Human-Machine Interface (HMI) | 7-inch Touchscreen | |
Indicator Lights | Green: Standby / Fully Charged |
